Bridgestone Dashboard Design
Make complex vehicle data more understandable for non-technical users.
Bridgestone Corporation is the world's largest tire and rubber company, their fleet managers rely on various digital tools to track vehicle and tire health. However, their tire health management platform (Toolbox and Tyrata) presented usability challenges, making it difficult for users to efficiently access key tools and insights. Our redesigned the platform - FleetFix - improved navigability, streamline workflows and integrate AI-driven recommendations, ensuring a more intuitive and efficient experience for all users managing tire health and fleet performance.
As the Lead UX Designer, I was responsible for conducting user research, building IA and wireframe, designing style guide, and prototyping. For data security, I have omitted confidential information in this project. All the data in this project belongs to me
Course
rOLE
UX Designer
in a team of 5
Date
Aug - April 2025
Skills
Research, Wireframe,
Prototype,
Information Architecture
01
Problem Statement

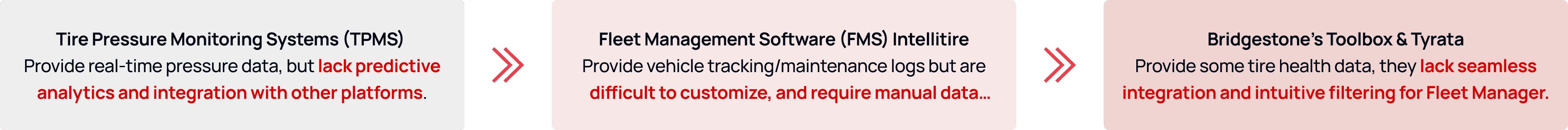

Tire maintenance today is fragmented and inefficient, leaving fleets vulnerable to delays and safety risks.

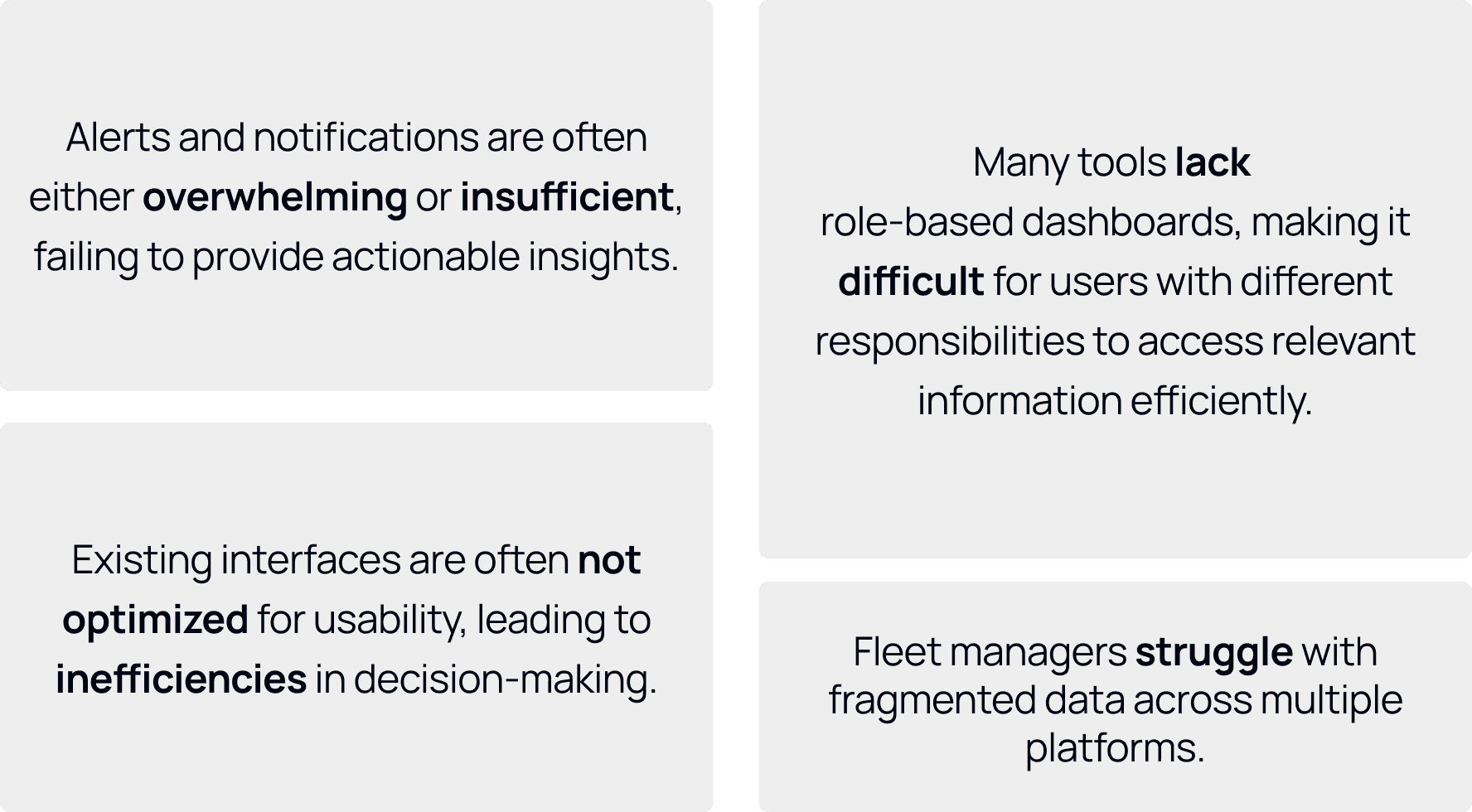

Challenges include: decentralized data, lack of intuitive visualizations, and inconsistent alert mechanisms.
These inefficiencies hinder proactive maintenance, leading to increased downtime, safety risks, and operational costs.
02
Our Goal
03
User Research

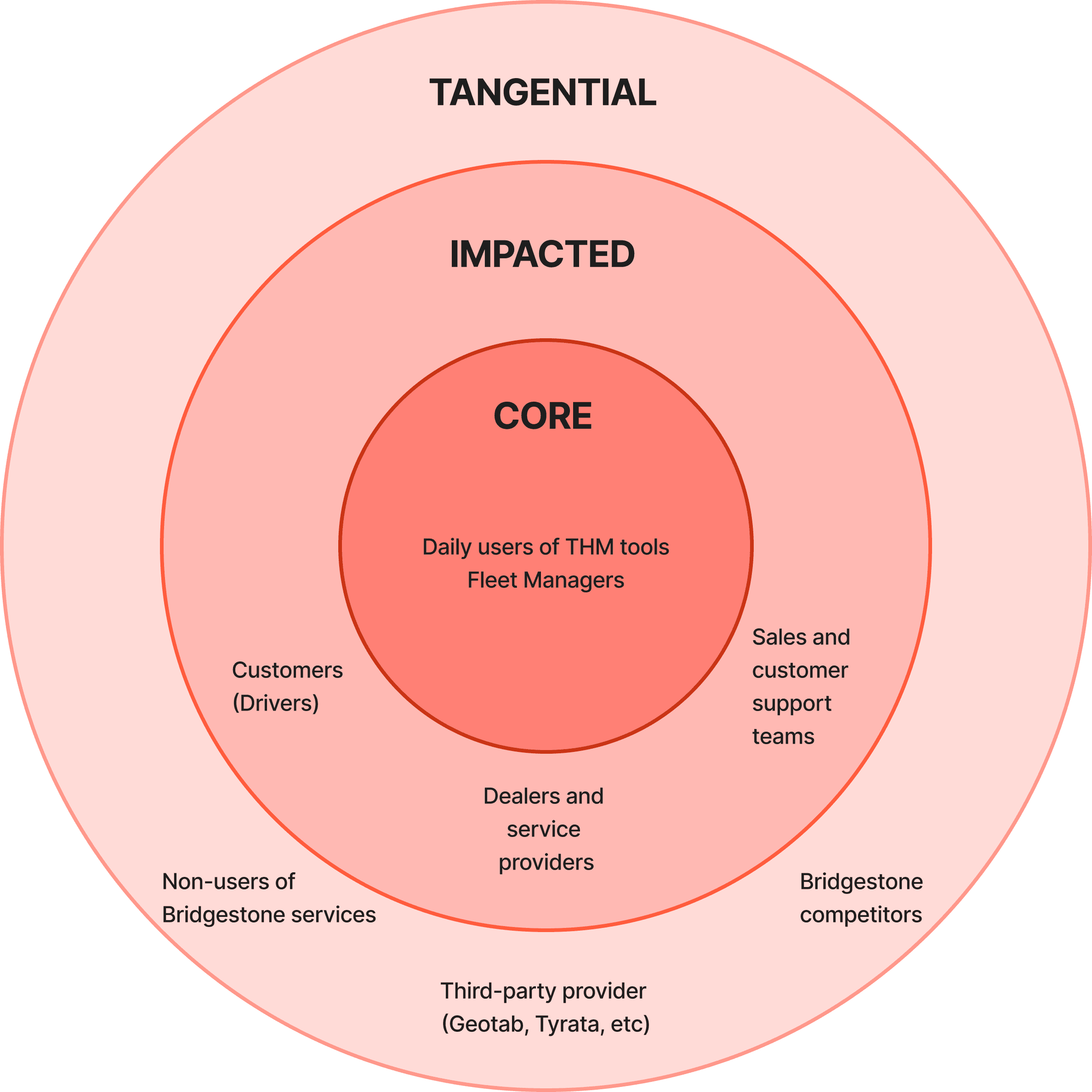

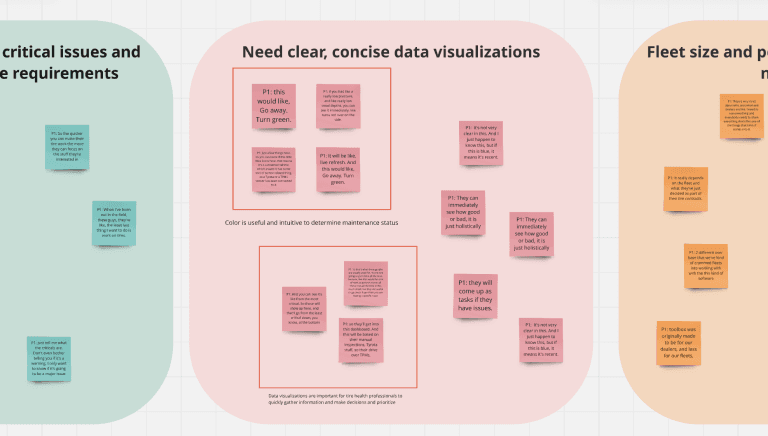

"When you look at this [tool], you see some things have worked for fleets, but it was made for dealers." - Fleet Manager
Learning the current process and limitation:

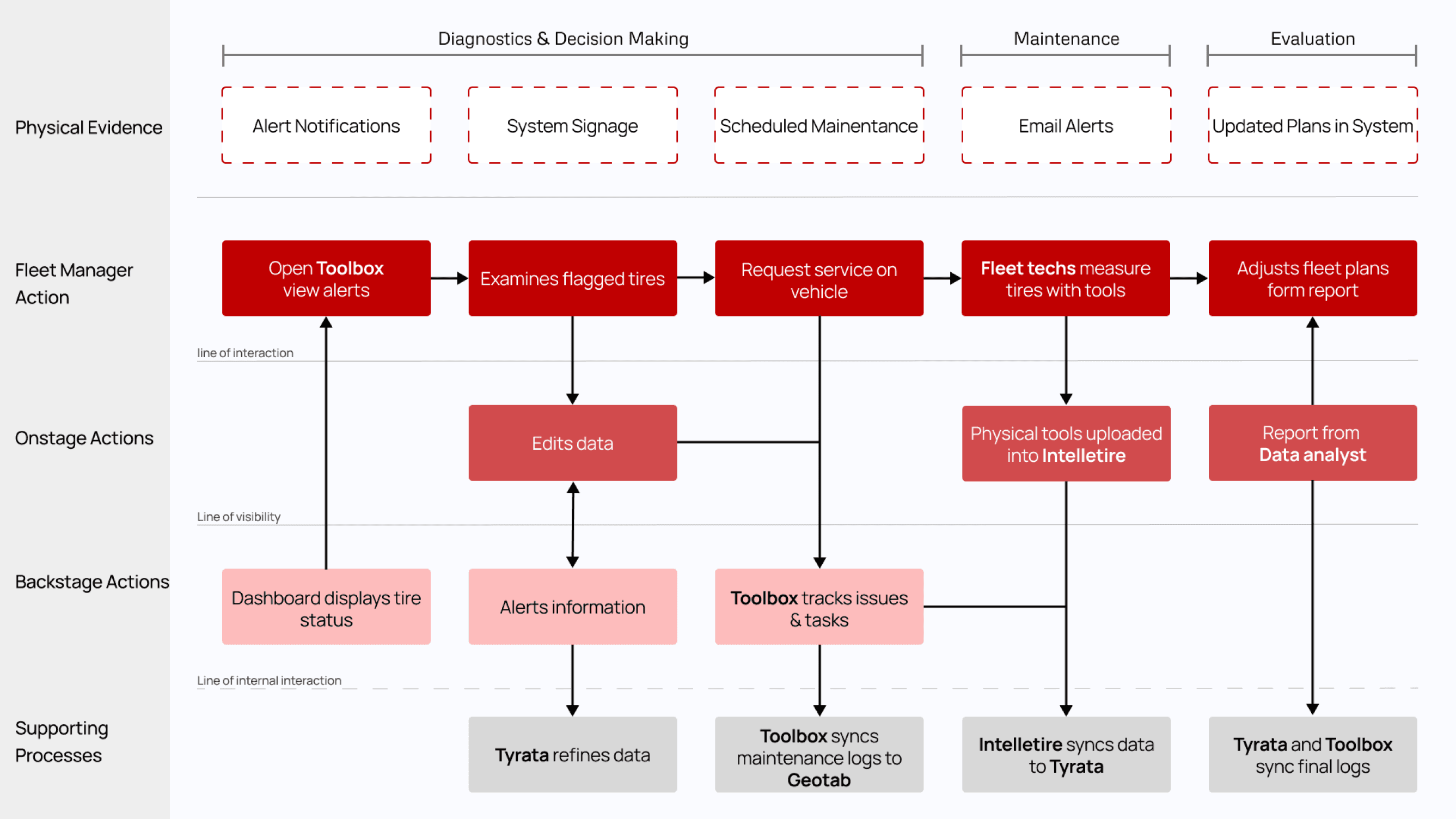

Service Blueprint gives an overview of frontstage and backstage actions.

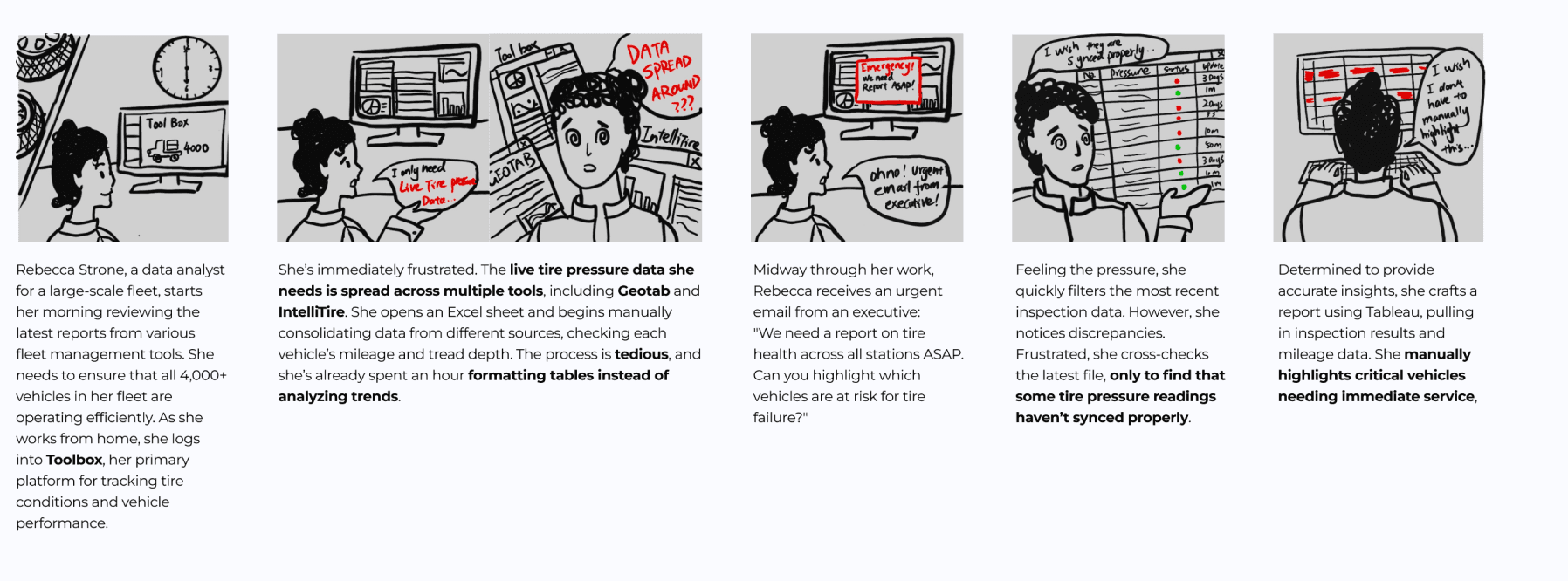

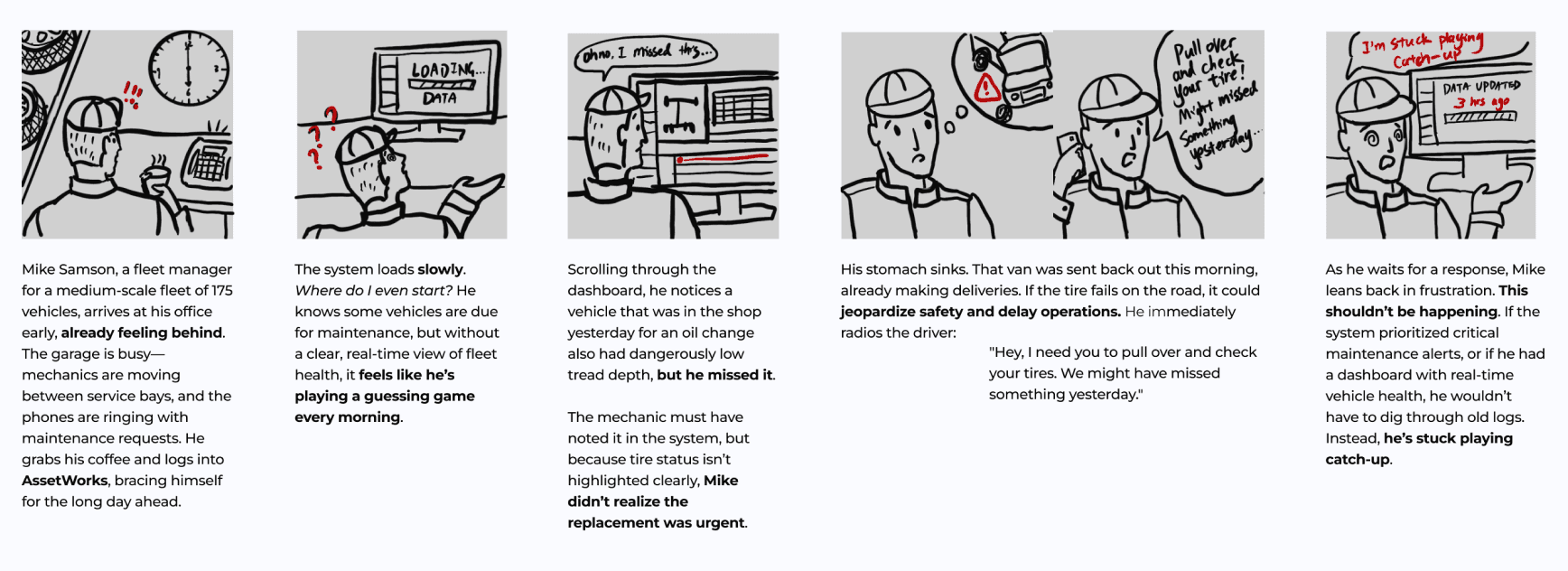

Persona / Story Board

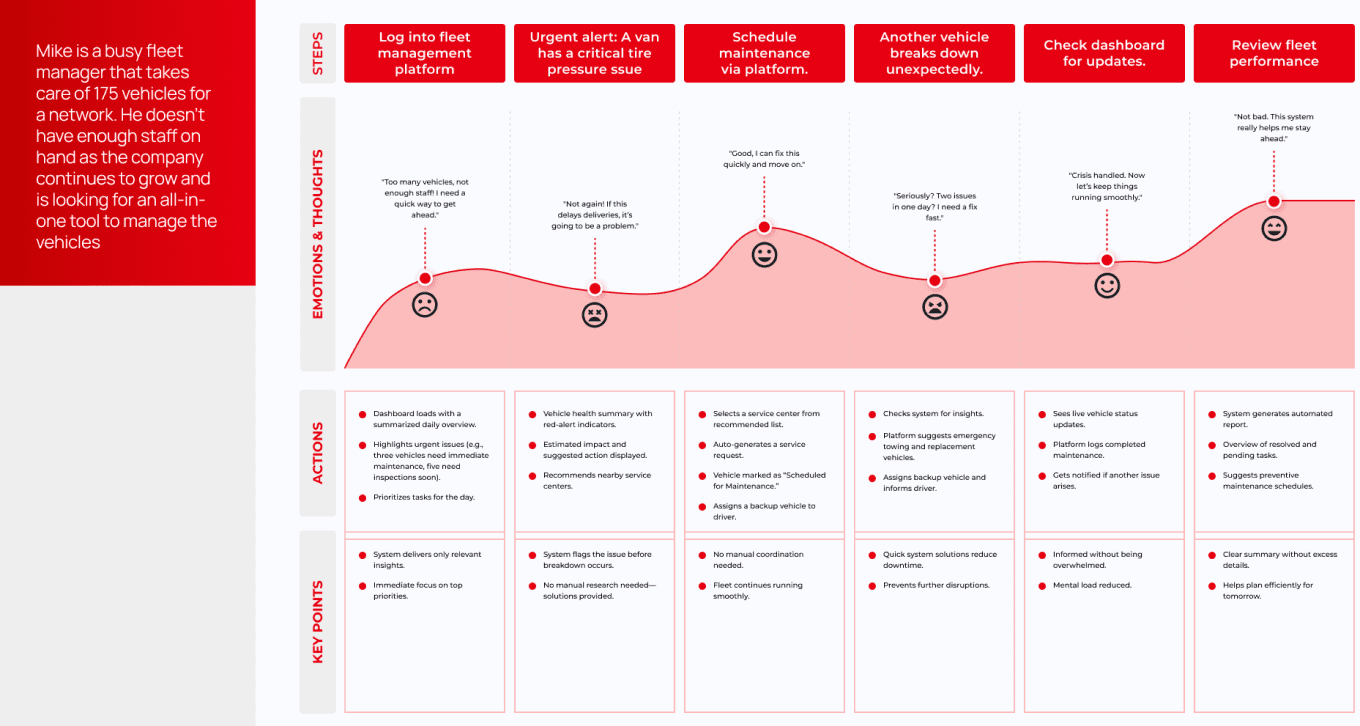

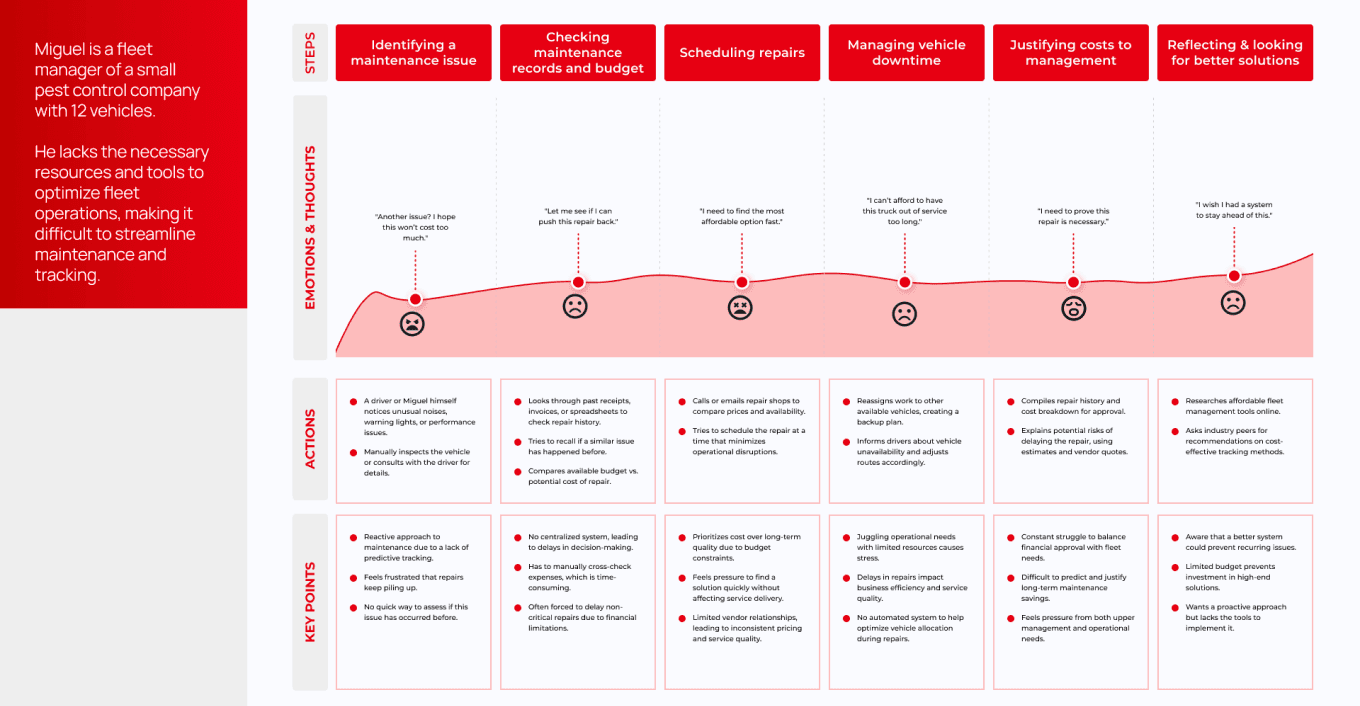

User Journey breaks down User’s touchpoints (needs, emotions, objectives, barriers) on a detailed level.
04
Ideate
05

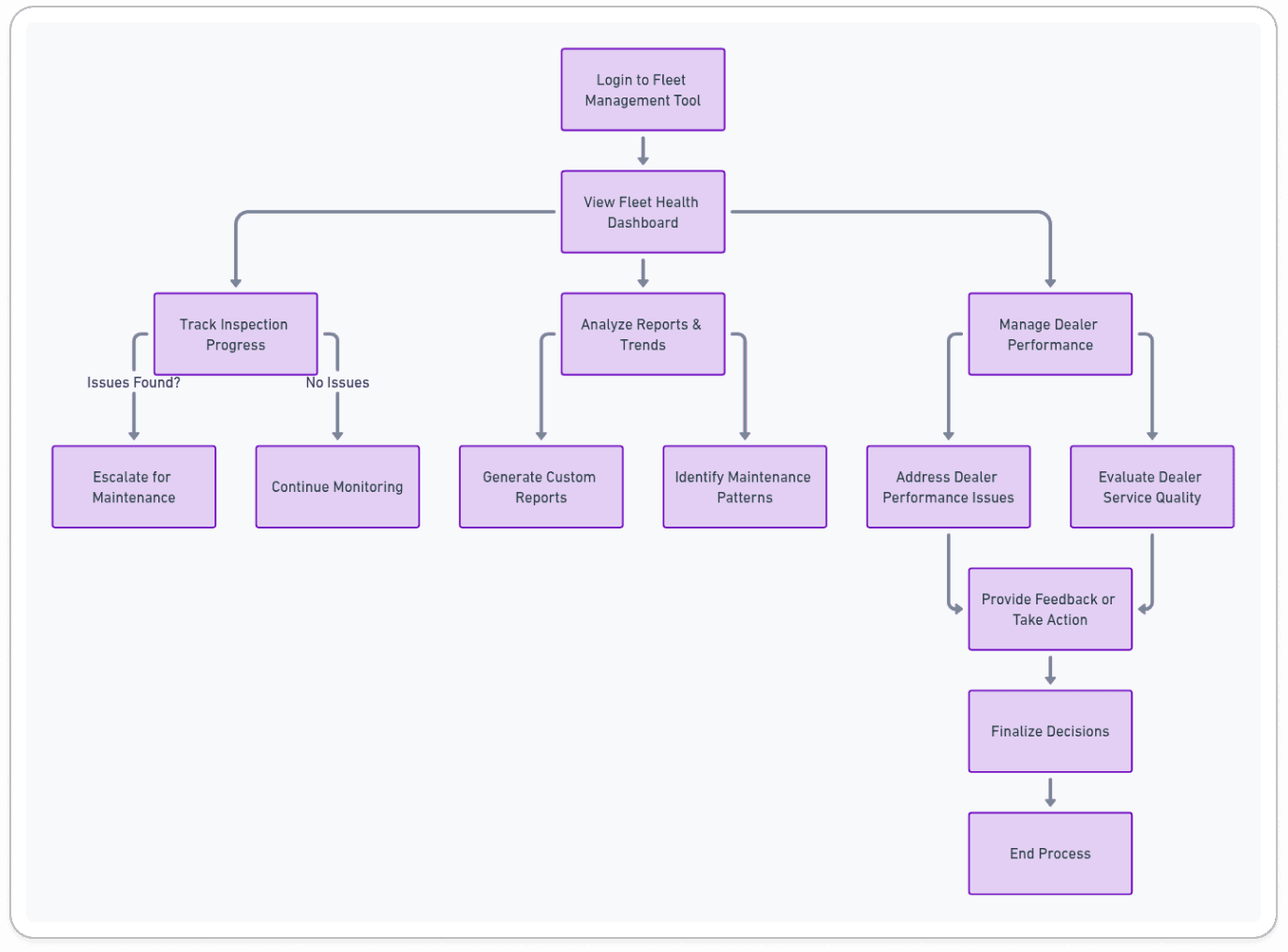

User Flow
06

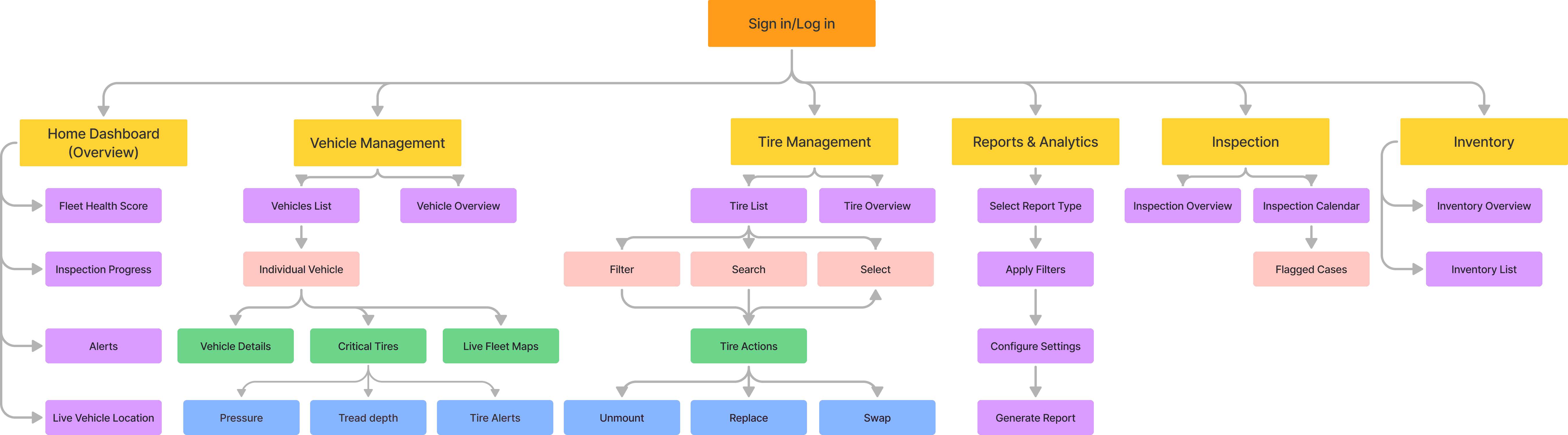

Sitemap
07
Lo-fi Design Decisions
07
Iterative User Testing

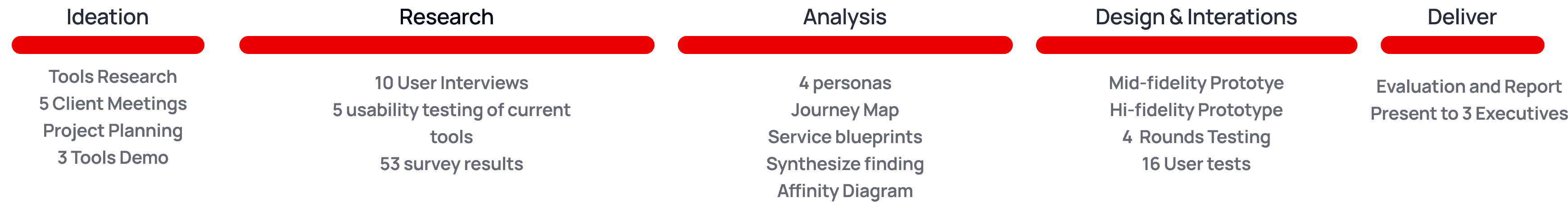

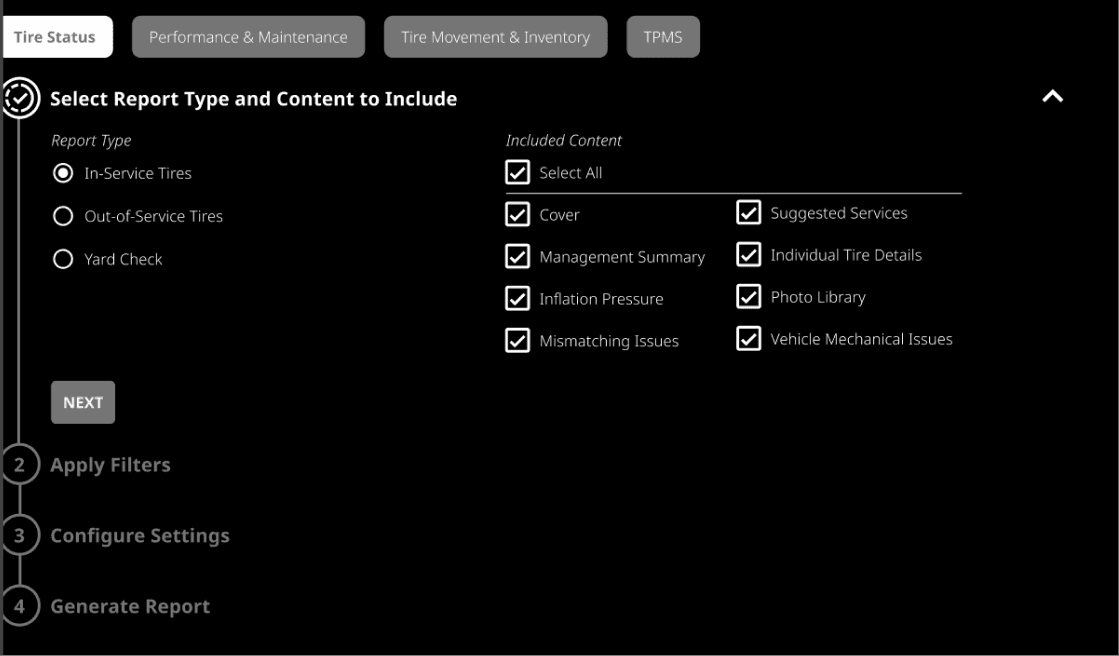

Multiple Steps Report
Users each want tailored information to be exported based on their needs, not all data always
All steps one view
Exportation of reports and data is customizable to fit the needs of the user.
Unclear Action Items
The checkbox design was not intuitive that user can take further action.
Distinct Calls to Action

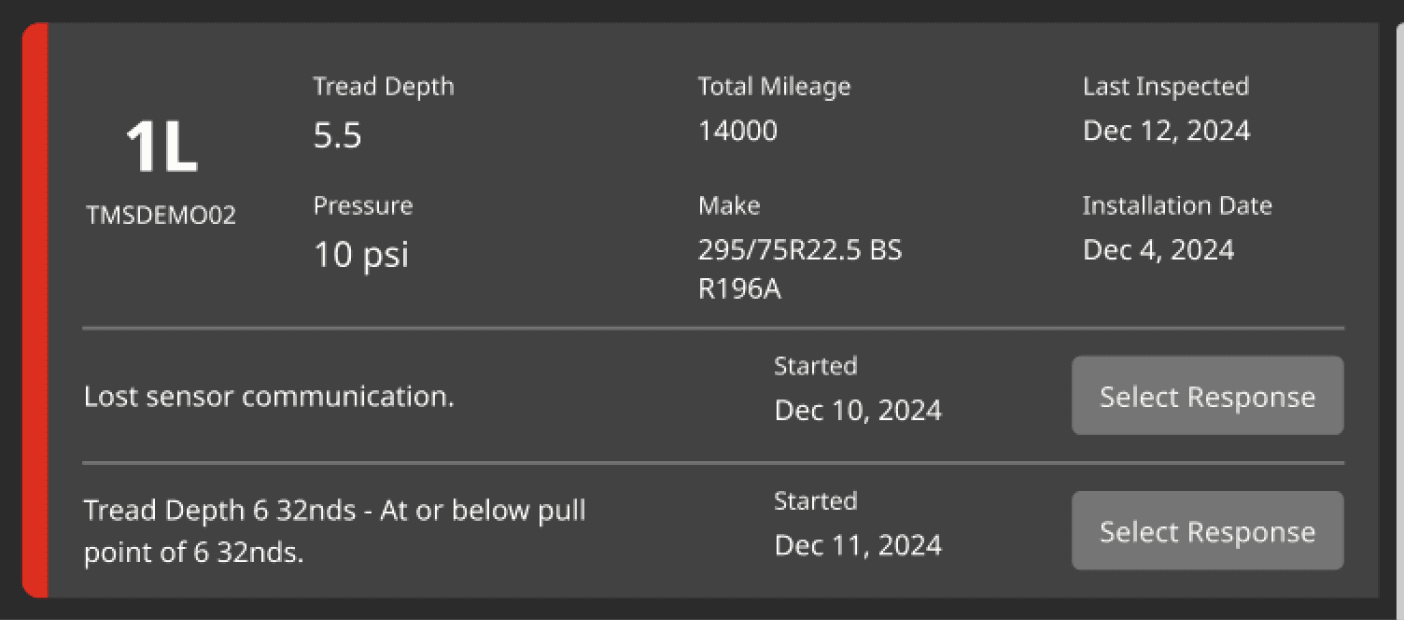

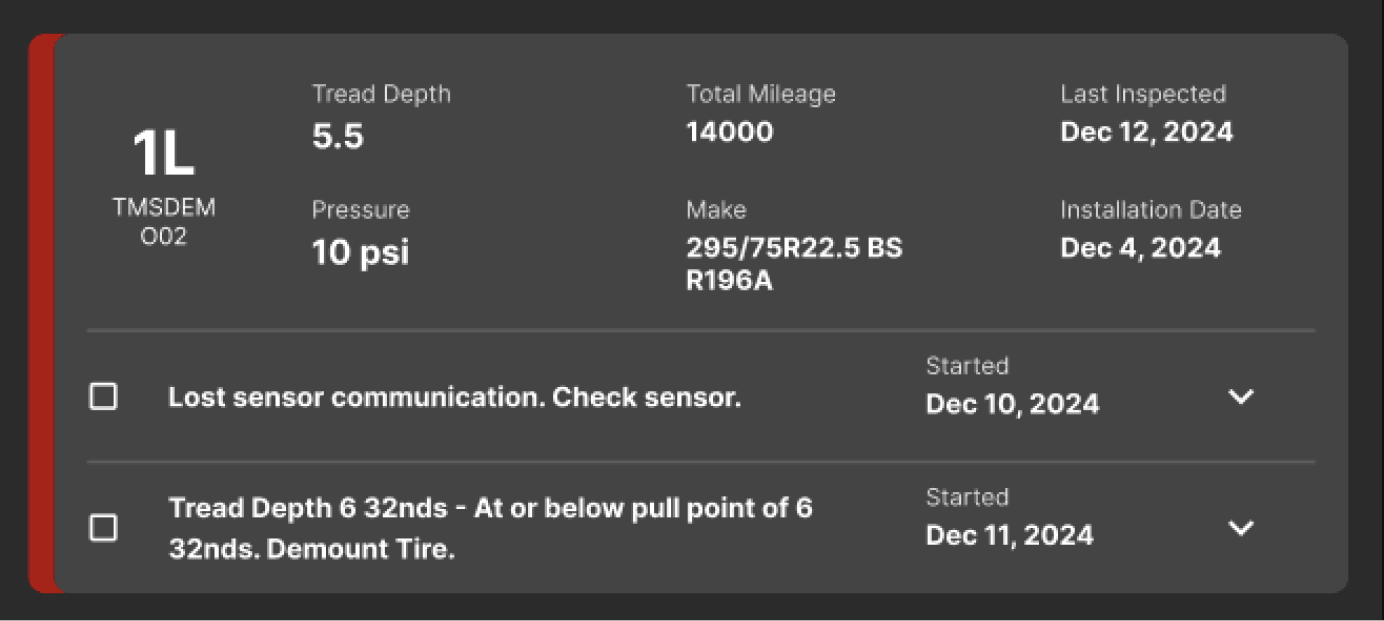

Replaced with a “Select Response” button makes it clear of the intended action, also add shortcut to clearing a tire task
Monthly View

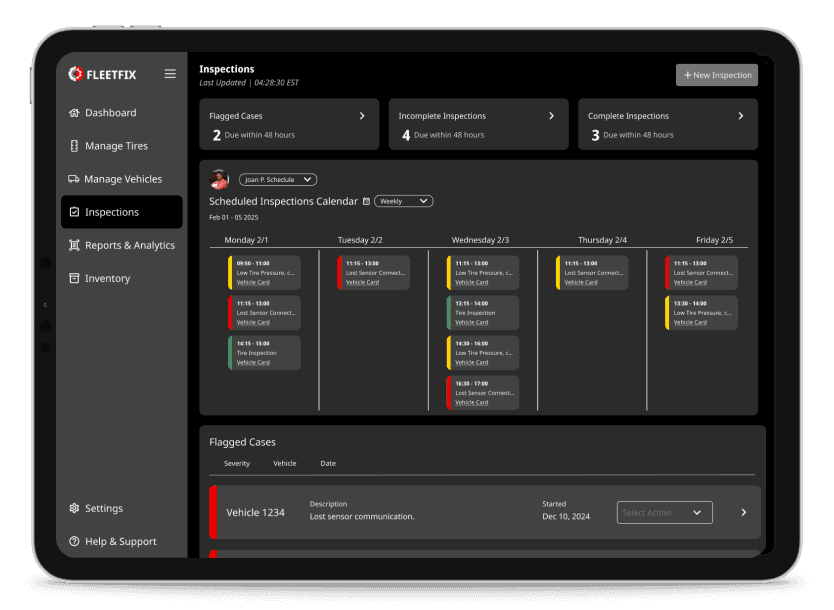

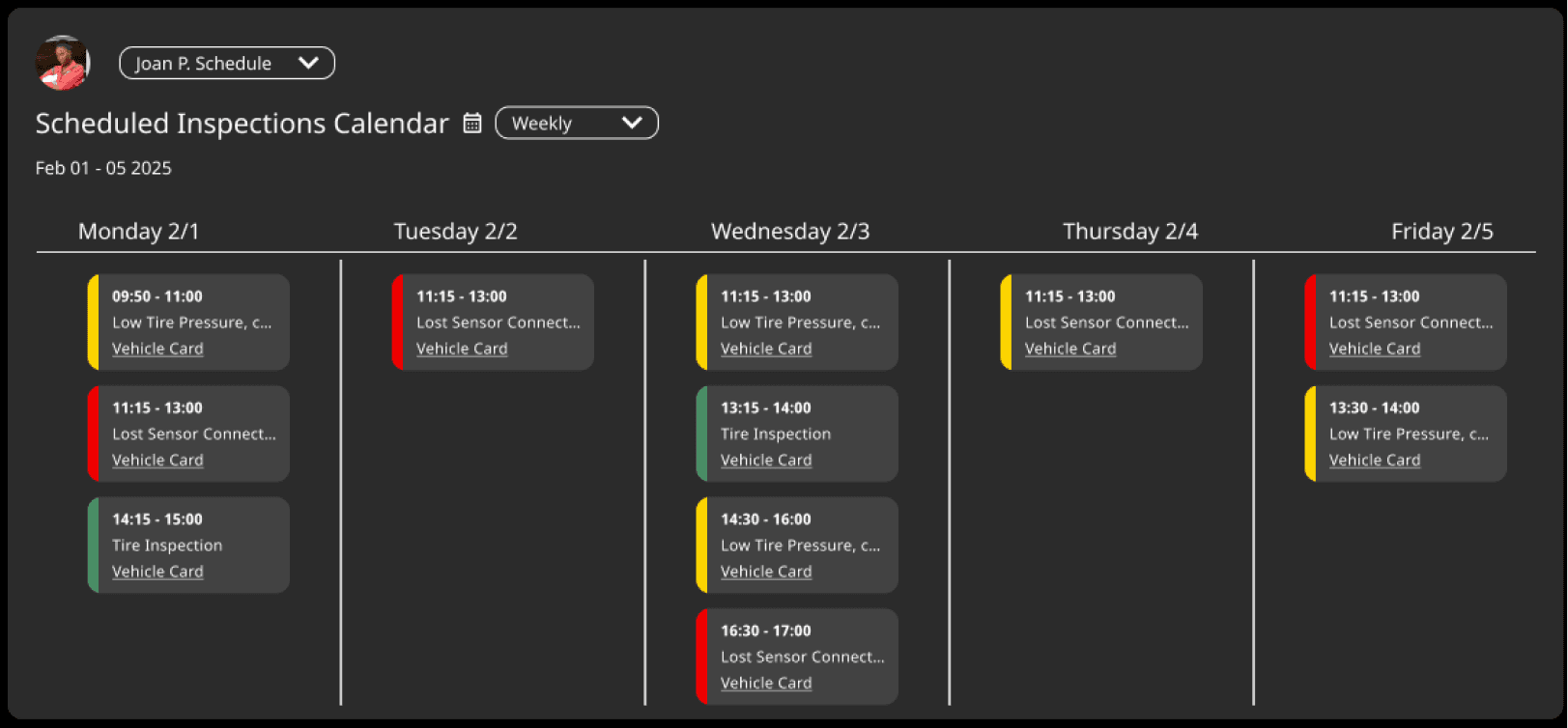

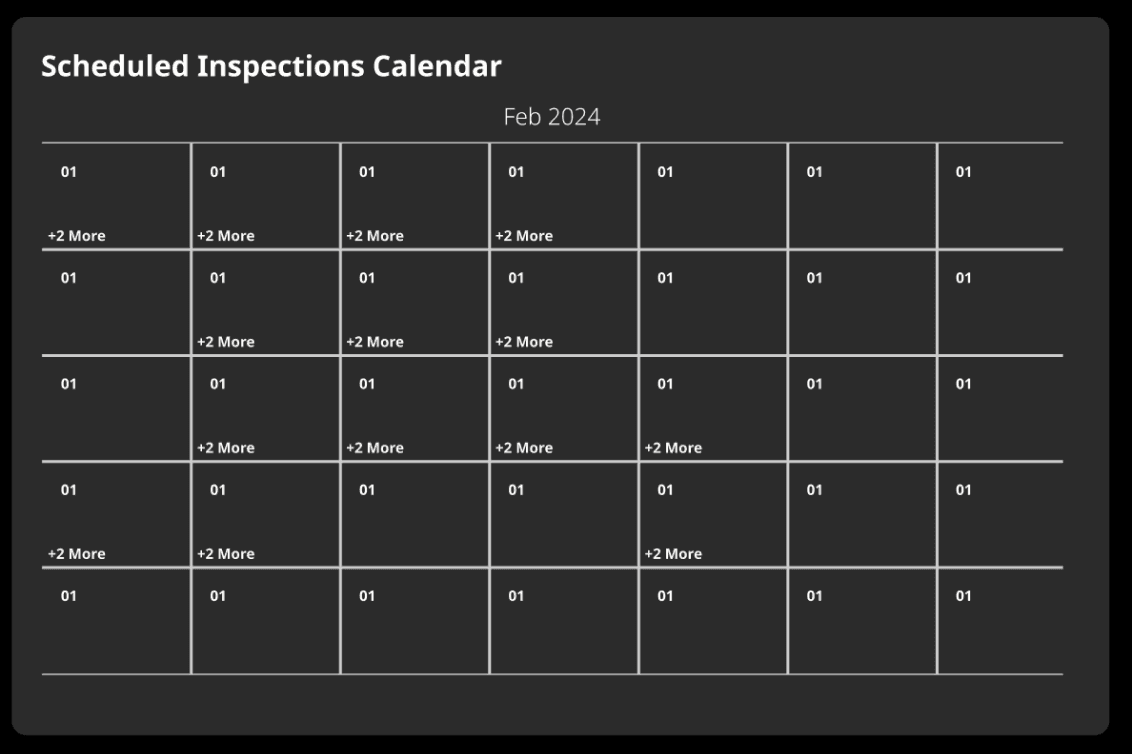

Weekly Inspections Calendar
Default Weekly preview provides greater day-to-day value to the fleet manager.
Indistinct Tire Status
Our lo-fi designs have little visual and contextual information. To diagnose future action, the user will need to click in to an individual vehicle.
Hover Alert Information
Colored tires + hover state that highlights the alert in question, help better understand individual issues when wanted while remain in overview.
Iterative Design of Fleet Score Summary

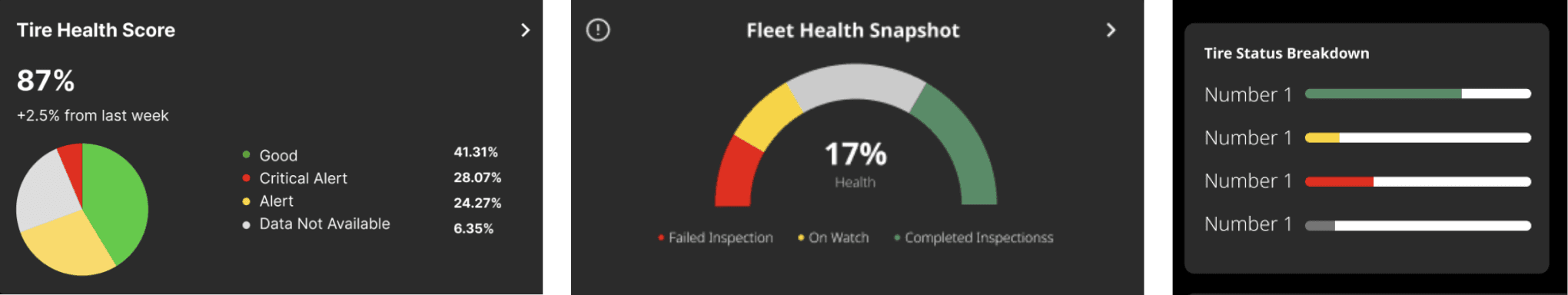

Users reported overall fleet health scores to be confusing and seemingly arbitrary (1 & 2)
Users confused color in the fleet health score summary with similar colors used in an adjacent graphics (1, 2, 3)
Users reported sliding bar graphic implied that all bars could be at 100% and that that was the ideal state (3)

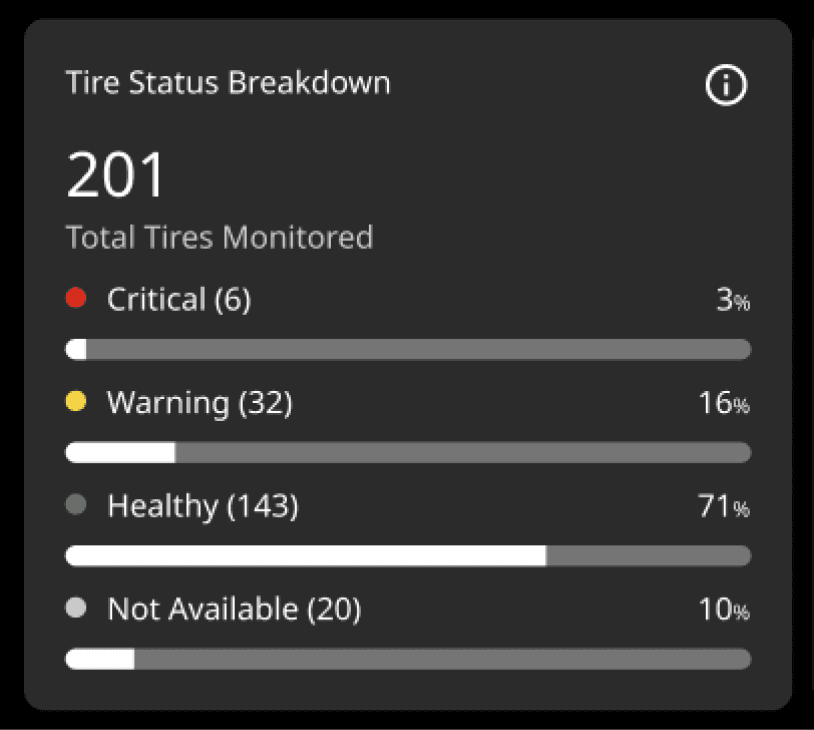

Intuitive Progress bar

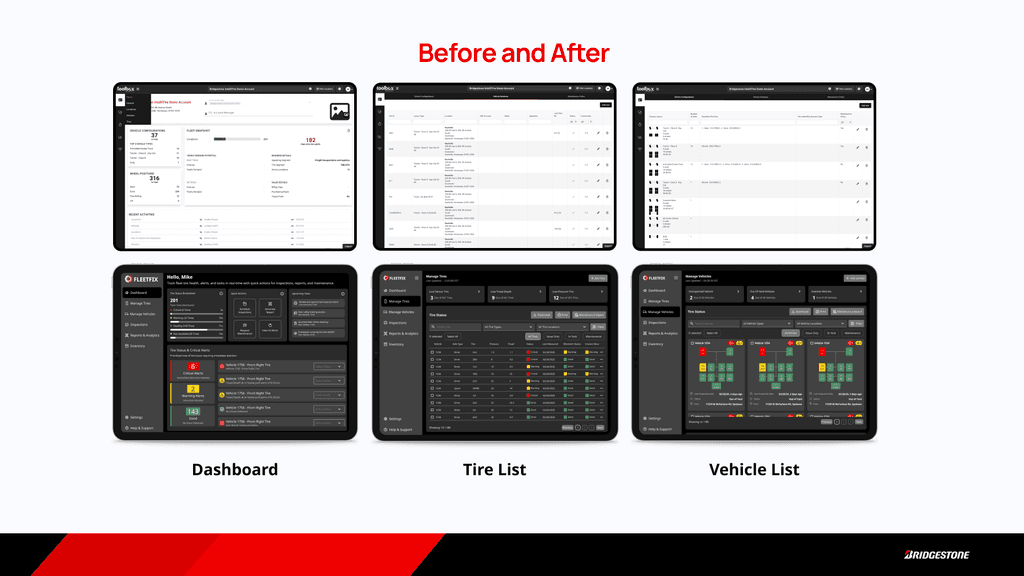

09

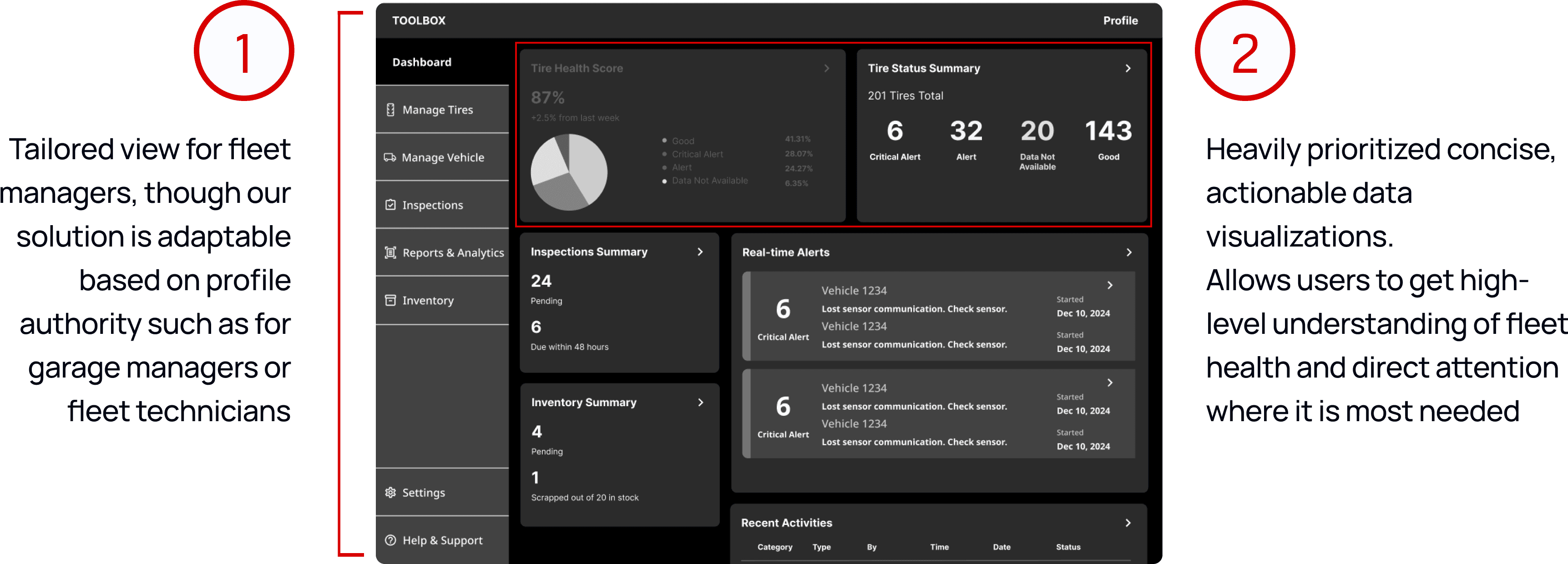

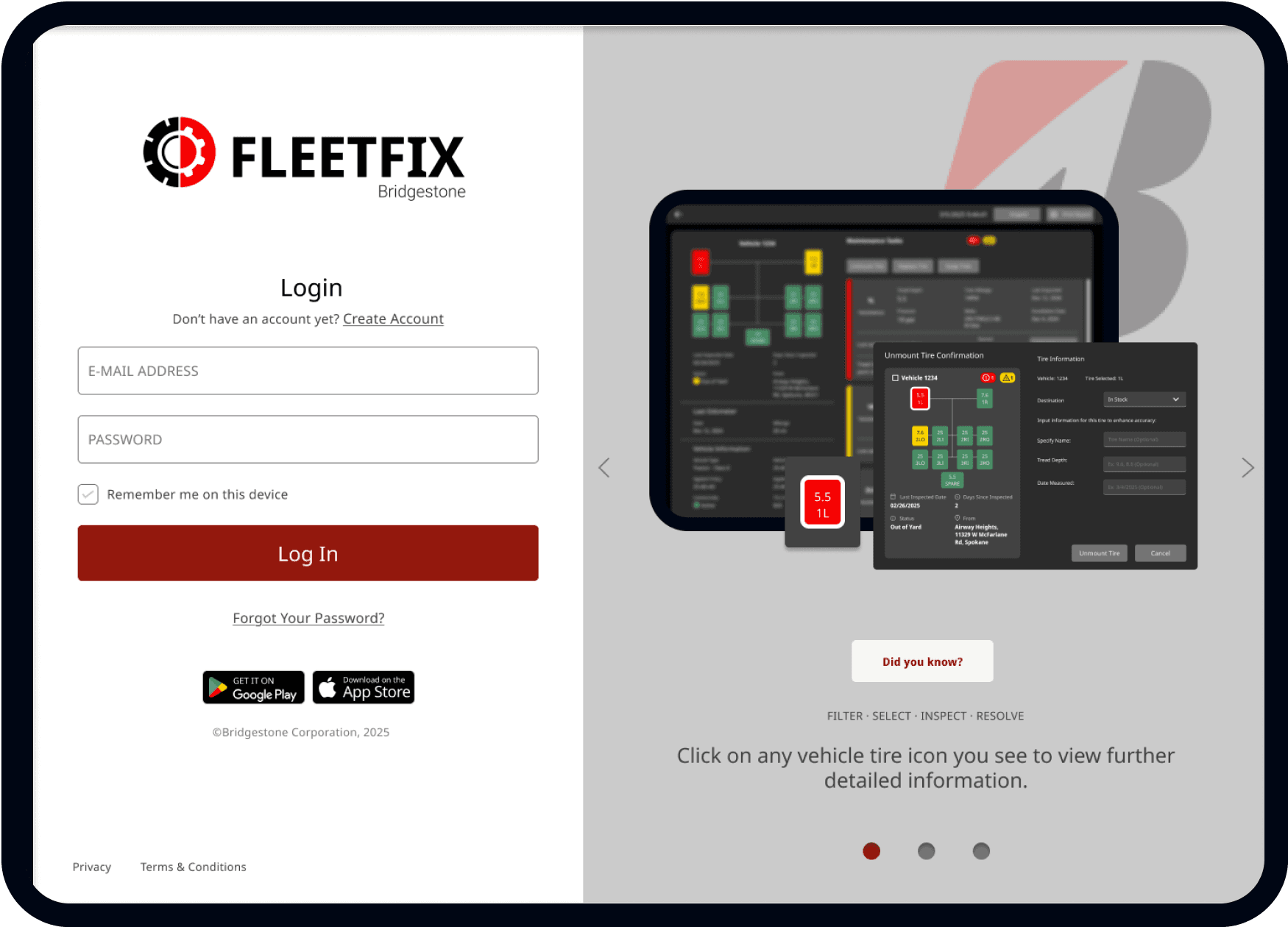

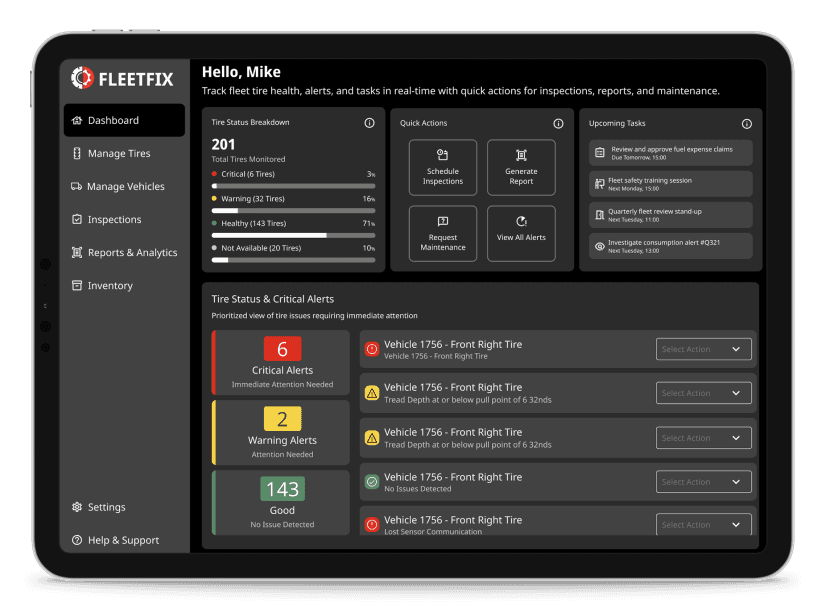

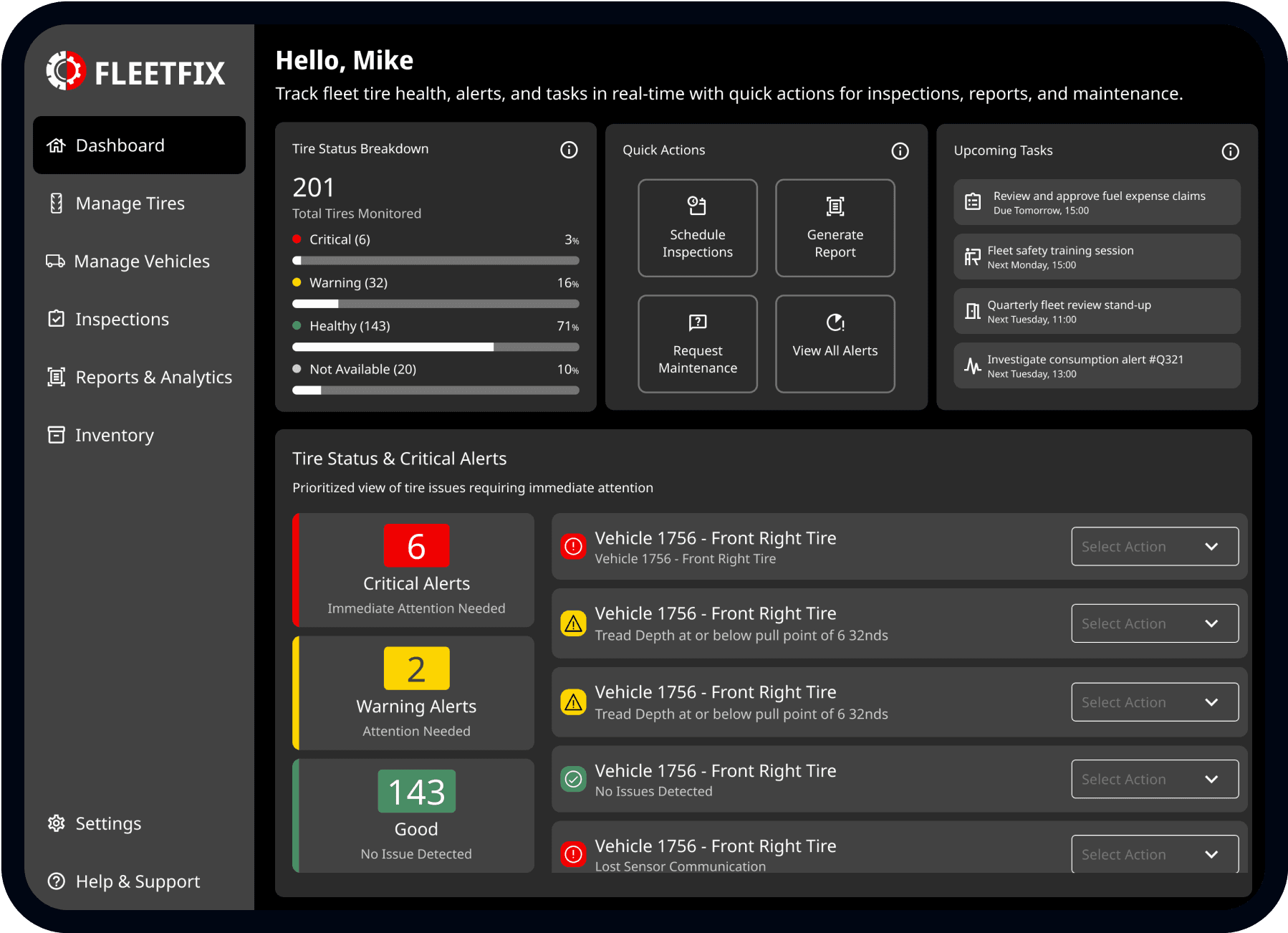

Home Dashboard
Manage Tire
Manage Vehicles

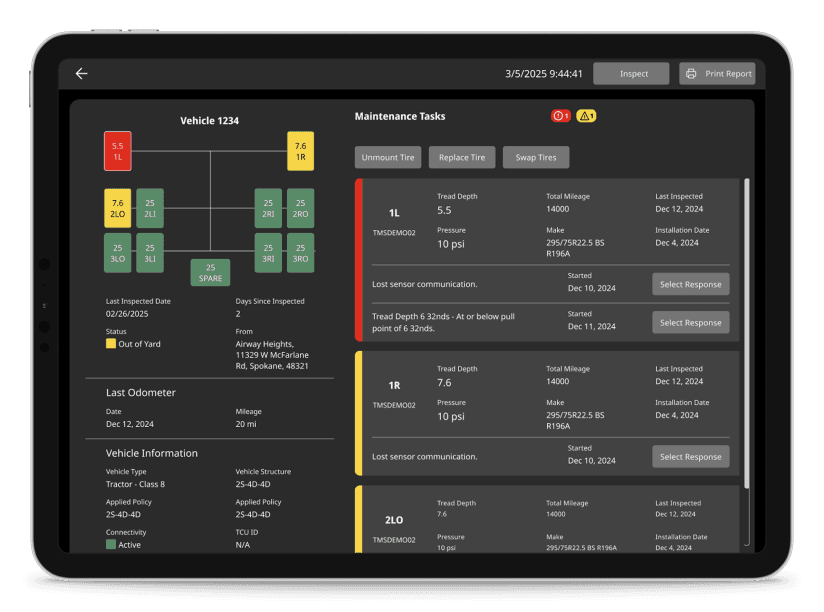

Vehicle Details
Inspection
Report & Analysis

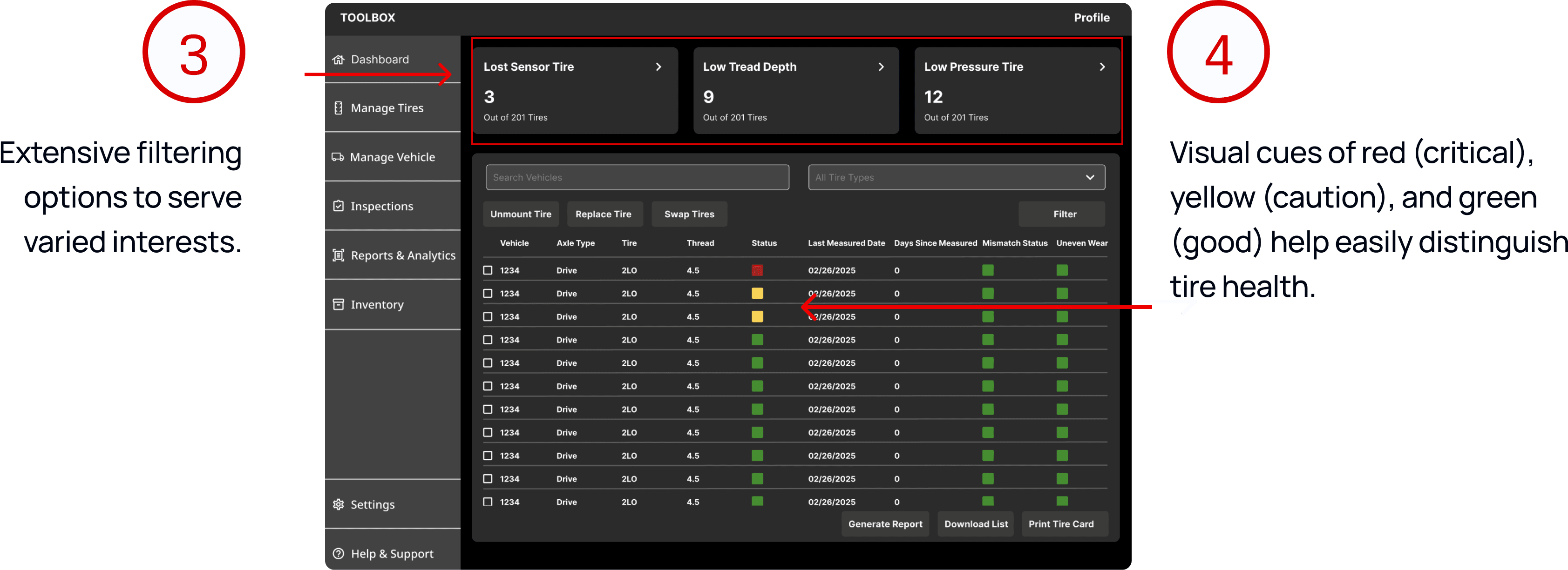

Manage Tire

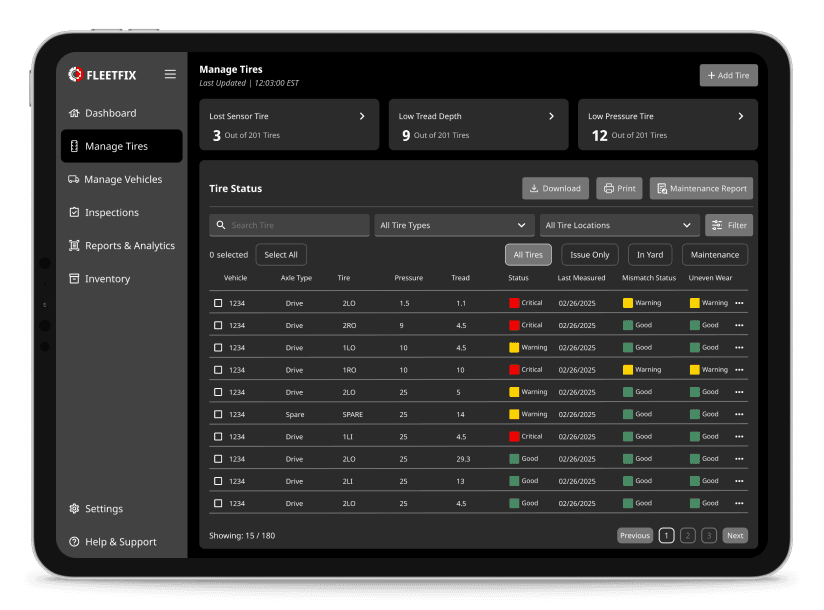

Filters help refine and curate list views efficiently.
Quick Export allows users to easily share customizable datasets from list views.
Manage Vehicle

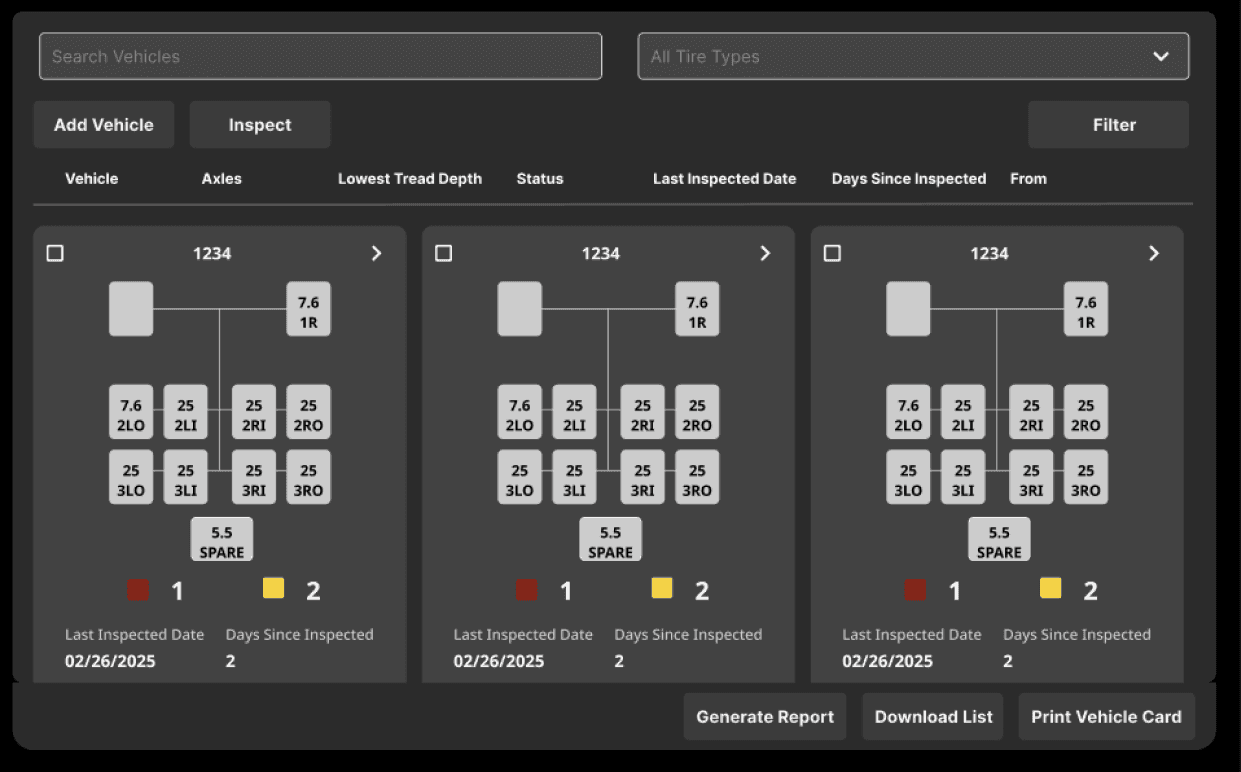

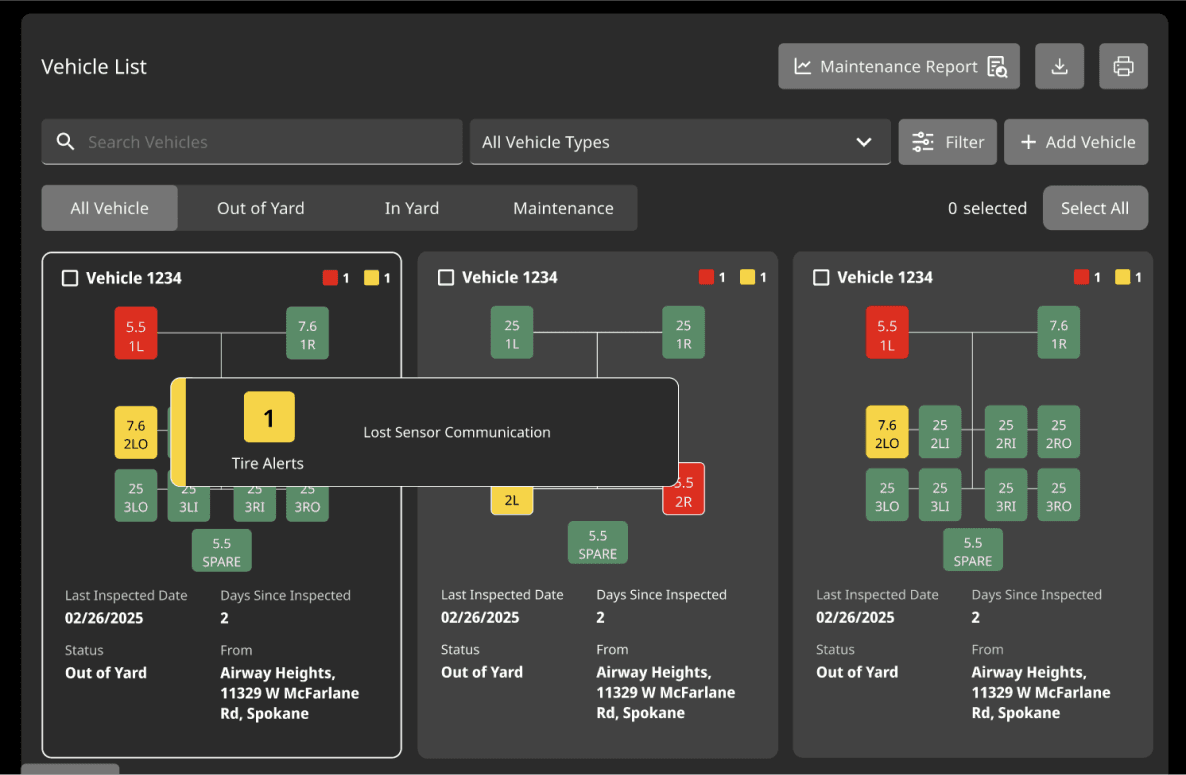

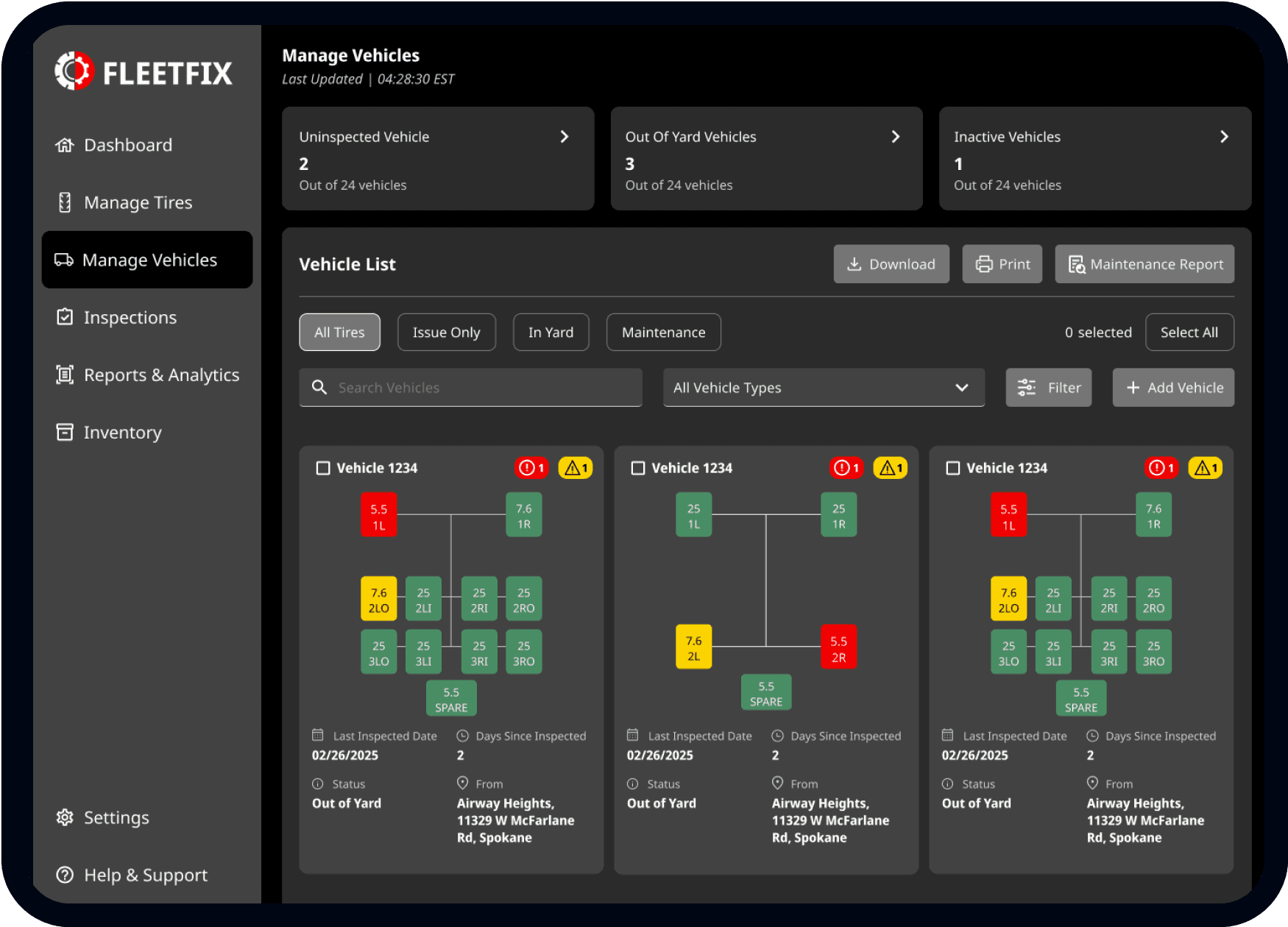

Vehicle Cards: overview of key information and can be selected to generate reports or view detailed data.
Vehicle Diagrams: visually display each tire’s condition for better clarity.

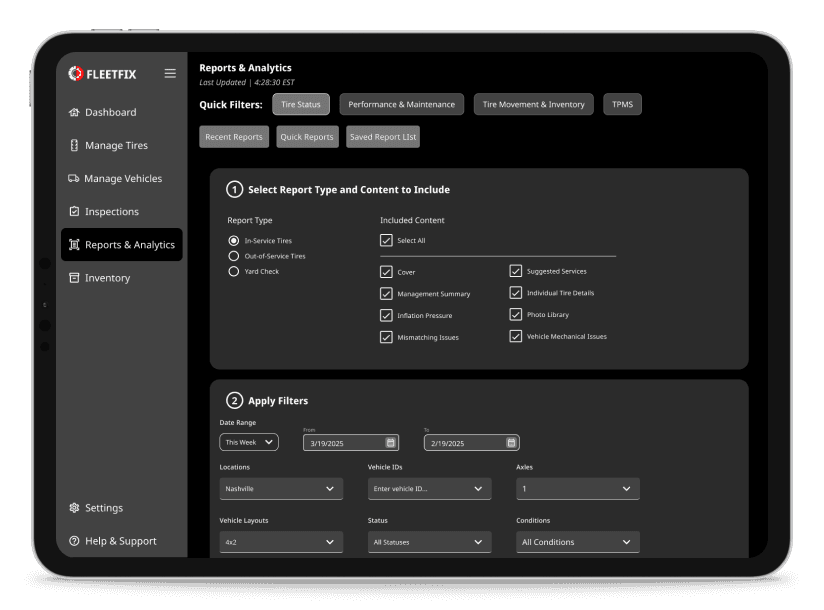

Generate Report

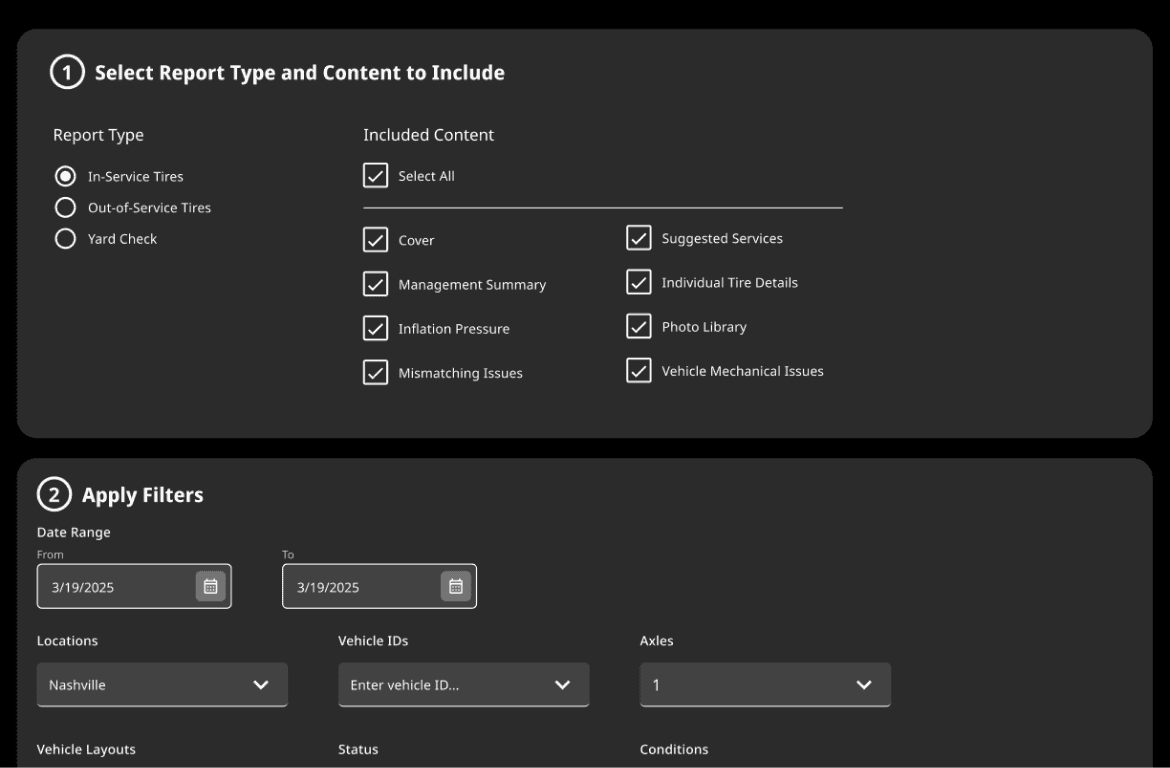

Custom Report Generation: Users can easily create tailored reports based on selected vehicles, tires, or time periods.
Smart Filters: Flexible filters help users narrow down datasets by vehicle type, location, or tire condition.
10
Evaluation Summary

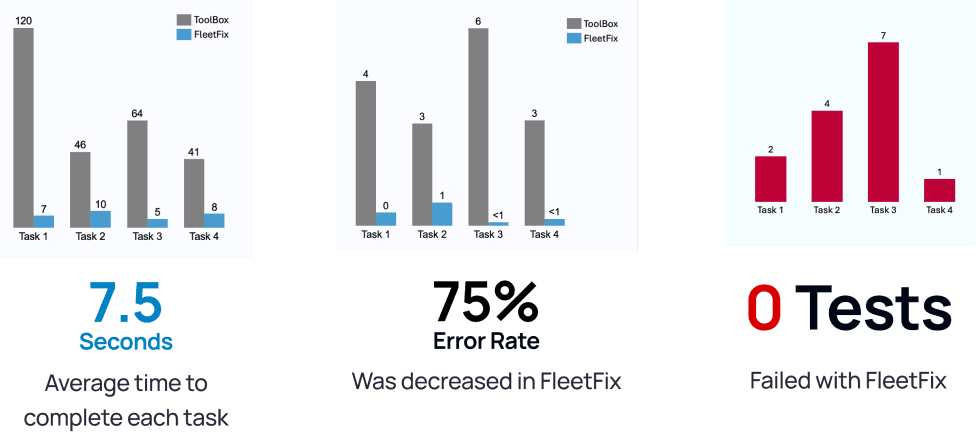

Usability Test Result

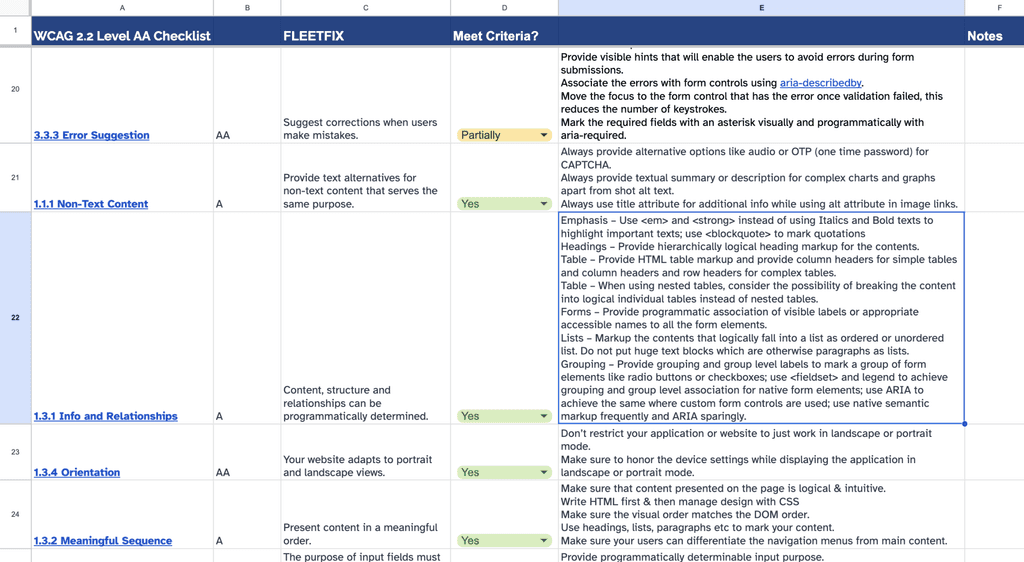

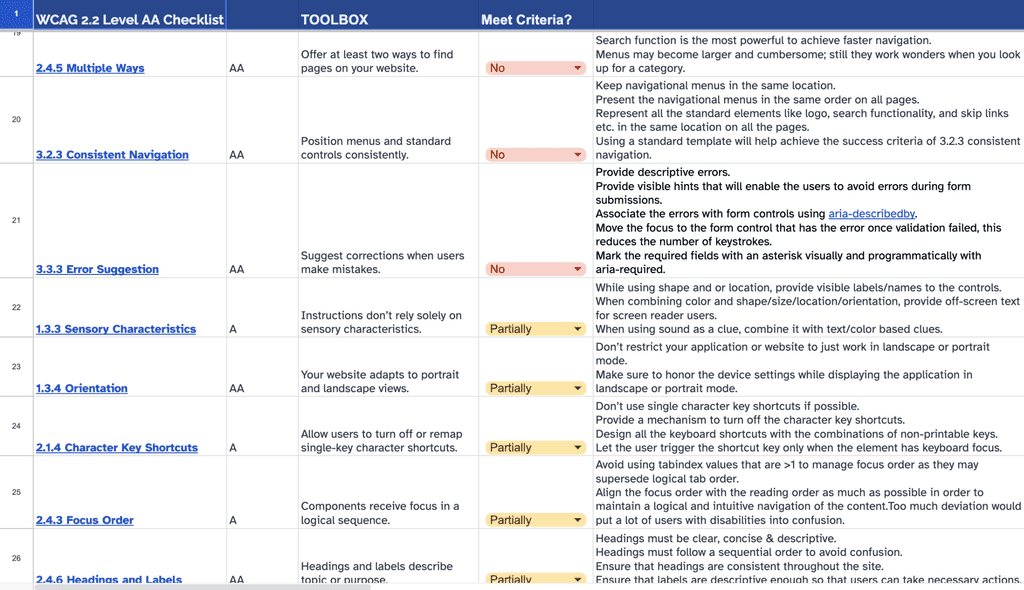

Accessibility:
Did They Pass?
